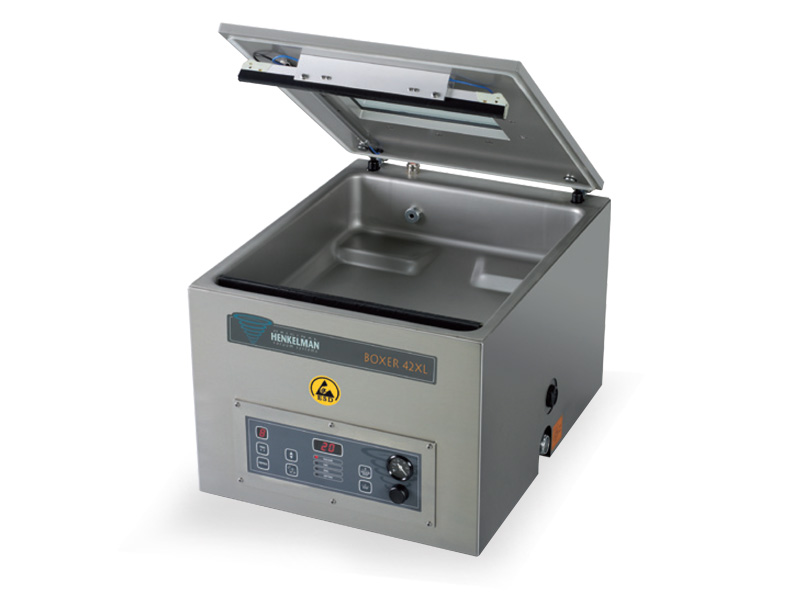

Boxer 42 XL ESD

Capacity pump21 m³/h
Machine cycle15-35 s
Dimensions610x490x420 mm
Weight67 kg
Voltage230V-1-50Hz
Power0.7-1 kW
Chamber dimensions460×420(sealing)x120(H)

Modern table models with proven packaging achievements

◦Full range for vacuum and MAP packaging options

◦Program choices for specific packaging requirements

◦Many advantages which return the investment rapidly

◦User friendly and low maintenance, supplied with cleaning program

◦Worldwide reputation in professional and flexible packaging

◦Stainless steel housing

◦Stainless steel deep-drawn vacuum chamber for optimal hygiene

◦Transparent lid

◦Easily removable wireless sealing bars in vacuum chamber

◦Filler plates for adjusting vacuum chamber height

◦Digital command and cleaning functions

◦Added value for company and product

◦User friendly and easy to clean

◦Suitable for a large range of product and dimensions

◦Soft air ventilation for better product protection



Packaging functions

◦Vacuum: Final vacuum 99,80% (2 Mbar)

Soft-air: Controlled ventilation

◦Gas-flush Injecting : M.A.P. packaging



Sealing functions

◦Double seal:  2 convex sealing wire (2 x 3.5 mm)



◦Bi-Active seal: 1 flat sealing wire (5.0 mm), bi-lateral seal



Operational control functions

◦Digital Control: vacuum and seal time settings + 10 personalized programs recordable

◦Sensor Control: % vacuum and seal time settings + 10 personalized programs recordable + possibility of vacuum plus extra time

◦Function Quick Stop H2O sensor: boiling point detection, condensation prevention inside the pump and product drying avoiding



Support control functions

◦STOP button for partial/full cycle interruption

◦Digital maintenance program for pump

◦Automatic reminder for oil replacement

◦Service detection device



Optional functions / accessories

 ◦Inclined plate for efficient packing of liquid products

◦Connection for external vacuuming food containers

◦Service kit for standard maintenance

◦Trolley with shelves and castors

ESD Configuration available for electronics and packing of product in clean rooms
