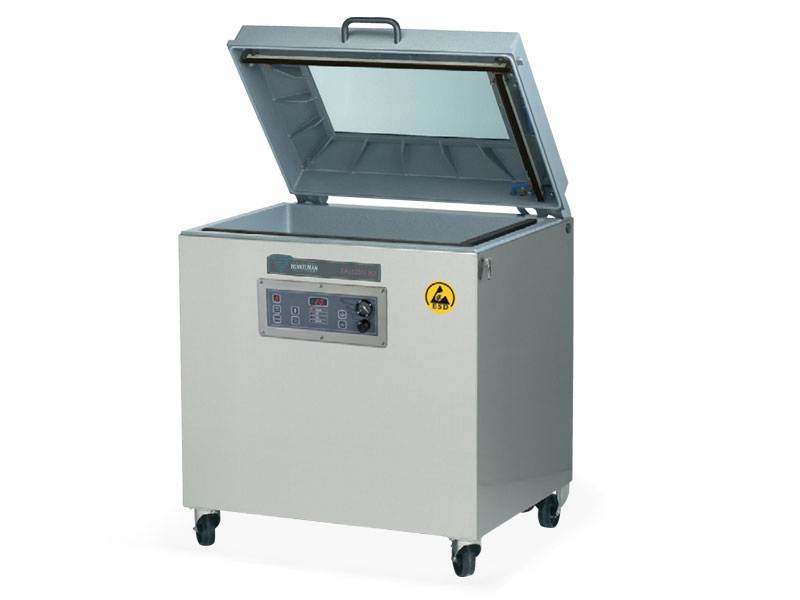

FALCON 80

Capacity pump100 m³/h
Machine cycle15-40 s
Dimensions900x820x1070 mm
Weight227 kg
Voltage400V-3-50Hz
Power3.0-5.0 kW
Chamber dimensions760(sealing)x510(sealing)x235(H)
Option460×810(2 sealing bars)x235(H)
Option700x560(2 sealing bars)x235(H)

Robust single and double chamber vacuum packaging machines

◦Full range for vacuum and MAP packaging options

◦Program choices for specific packaging requirements

◦Industrial machines for an attractive price

◦User friendly equipment supplied with complete service program

◦Efficiency and optimal profit due to professional packaging

◦Single and double chamber floor models

◦Stainless steel housing

◦Aluminum vacuum chamber

◦Aluminum lid with sight glass

◦Easily removable silicon holders

◦Sealing mechanism mounted in lid

◦Insert plates for adjusting vacuum chamber height



Packaging functions

◦Vacuum: Final vacuum 99,80% (2 Mbar)

Gas-flush Injecting : M.A.P. packaging

◦Soft-air: Controlled ventilation



Sealing systems

◦Double seal: 2 convex sealing wire (2 x 3.5 mm)

◦Cut-off seal: 1 convex sealing wire (3.5 mm) + 1 round cutting wire (1.1 mm)

◦1-2 cut-off seal: cutt-of seal system with independent time setting

◦Wide Seal:1 flat sealing wire (8.0 mm)

◦Bi-Active seal: 1 flat sealing wire (5.0 mm), bi-lateral seal



Operational control functions

◦Digital Control: vacuum and seal time settings + 10 personalized programs recordable

◦Sensor Control: % vacuum and seal time settings + 10 personalized programs recordable + possibility of vacuum plus extra time



NEW: Function Quick Stop H2O sensor: boiling point detection, condensation prevention inside the pump and product drying avoiding



Support control functions

◦STOP button for partial/full cycle interruption

◦Digital cleaning program for pump

◦Automatic reminder for oil replacement

◦Service detection device



Optional functions / Accessories

◦Filler plate to optimize the chamber volume for packaging

◦Inclined plate for efficient packing of liquid products

◦Service kit for standard maintenance

◦ ESD Configuration available for electronics and packing of product in clean rooms
