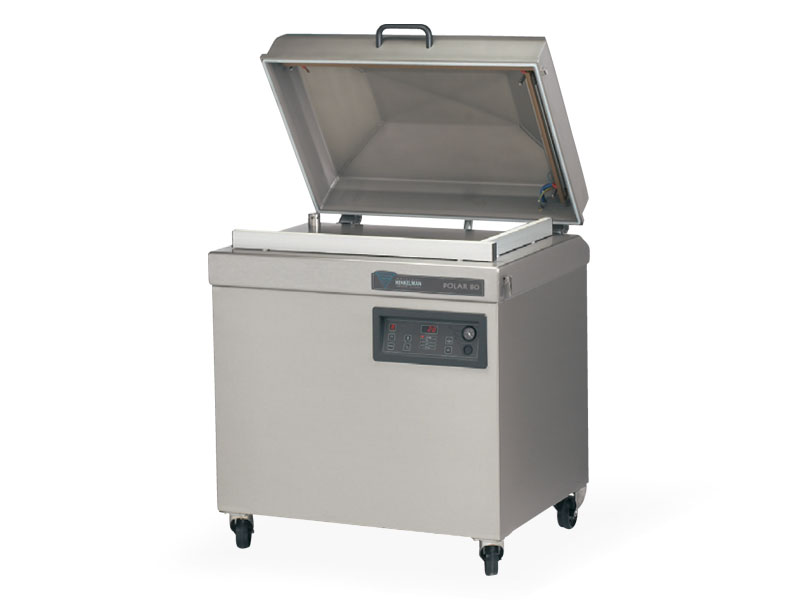

POLAR 80

Capacity pump100 m³/h
Machine cycle15-40 s
Dimensions920x790x1125 mm
Weight241 kg
Voltage400V-3-50Hz
Power3,0-5,0 kW
Chamber dimensions510(saling)x760(sealing)x200(H)
Option460x810(2 sealing bars)x200(H)
Option700x560(2 sealing bars)x200(H)

Renowned series of stainless steel packaging machines

◦Full range for vacuum and MAP packaging options

◦Program for specific packing requirements

◦Large variety of applications in worldwide industrial productions

◦User friendly machines supplied with complete service program

◦Well-balanced constructions and high quality materials

◦Single and double chamber floor models

◦Stainless steel housing

◦Stainless steel flat working plate

◦Stainless steel lid

◦Easily removable silicon holders

◦Sealing mechanism mounted in lid

◦Filler plates for adjusting vacuum chamber height









Packaging functions

◦Vacuum: Final vacuum 99,99% (1 Mbar)

Gas-flush Injecting : M.A.P. packaging

◦Soft-air: Controlled ventilation



Sealing systems

◦Double seal: 2 convex sealing wire (2 x 3.5 mm)

◦Cutt-off seal: 1 convex sealing wire (3.5 mm) + 1 round cutting wire (1.1 mm)

◦1-2 cutt-off seal: cutt-off seal system with independent time setting

◦Wide Seal:1 flat sealing wire (8.0 mm)

◦Bi-Active seal: 1 flat sealing wire (5.0 mm), bi-lateral seal



Operational control functions

◦Digital Control: vacuum and seal time settings + 10 personalized programs recordable

◦Sensor Control: % vacuum and seal time settings + 10 personalized programs recordable + possibility of vacuum plus extra time



NEW: Function Quick Stop H2O sensor: boiling point detection, condensation prevention inside the pump and product drying avoiding



Support control functions

◦STOP button for partial/full cycle interruption

◦Cleaning program for pump

◦Automatic reminder for oil replacement

◦Service detection device



Optional functions / Accessories

◦Filler plate to optimize the chamber volume for packaging

◦Filler plate in the lid to double chamber volume optimization

◦Inclined plate for efficient packing of liquid products

◦Service kit for standard maintenance
